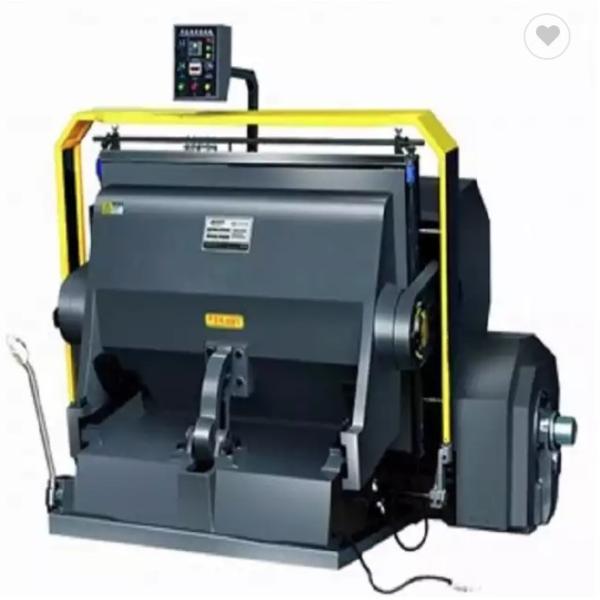

380V Automatic Die Cutting Machine For Paper Consumables

Brand Name : PM

Model Number : TL-780

Certification : CE

Place of Origin : Zhejiang, China

MOQ : One set

Price : US $ 8,000 - 25,000 / Set

Supply Ability : 20 Sets per Month

Delivery Time : 30 days

Packaging Details : Wooden case

Condition : New

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V

Power : 12kw

Weight : 5500

Dimension : 3700x1910x2200

Contact Now

Automatic Foil Stamping and Die Cutting Machine

Description:

1. We design TL780 automatic foil stamping and die cutting machines. Their functions include hot stamping, die cutting, convex pressing and creasing. It can also carry out automatic feeding, hot stamping and paper collection, etc.

2. This machine consists of main motor, hot stamping mechanism, auto feeder, and electric equipment. The motor drives the shaft in an up and down motion, and the pressure can be conveniently adjusted to carry out the stamping or die cutting process.

3. Micro processor is used to control the entire machine. The electrical parts of our machine include main feeder/collect control, motor control, foil feeder control, etc.

4. The machine is equipped with an automatic lubrication system.

Specificaitons:

Model	TL780
Max. sheet size(mm)	780×560
Min. sheet size(mm)	280×220
Max. feeding pile height (mm)	800
Max. collect pile height (mm)	160
Max. working pressure(N)	110×104
Power rating(KW)	12
Air pump displacement(m3/h)	40
Paper range(g/m2)	100 -2000
Max. mechanical speed (s/h)	2500s/h paper>150g/m2 1500s/h paper<150g/m2
Machine weight(kg)	5500
Machine noise(db)	<81
Heating capacity(KW)	8
Overall machine dimensions(mm)	3700×1910×2200
