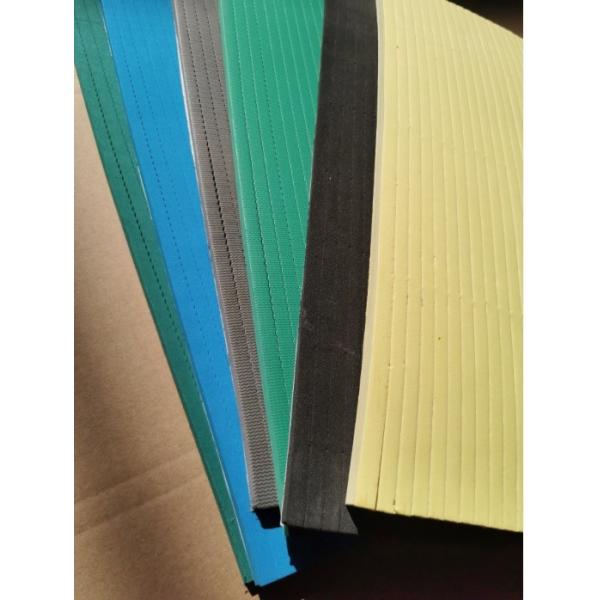

Punch With Side Ejection Rubber Sheet For Die Cutting Anti Sliding

We have 2 kinds of ejection rubber:

1. Green ejection rubber

300x380x8mm

300x380x10mm

Cut into wave line, Surface has dots for anti-sliding

Every 24 sheets/box for 8mm thickness

Every 20 sheets/box for 10mm thickness

Hardness: 35 shore

This high quality rubber is suitable for fully auto diecutting m/c with fast diecutting action

2. Yellow/blue ejection rubber

300x380x9mm

300x380x12mm

Cut into wave line, Surface has dots for anti-sliding

Every 24 sheets/box for 9mm thickness

Every 20 sheets/box for 12mm thickness

Hardness: 20 shore

This medium quality rubber is suitable for semi-auto diecutting m/c (tiger mouth diecutting m/c).

ITEM	HARDNESS	THICKNESS	PACKAGE
White Band Shape Rubber	20	9mm	27sheets/box
		12mm	20sheets/box
Orange Band Shape Rubber	25	8mm	30sheets/box
		9mm	27sheets/box
Orange Wave Shape Rubber	25	8mm	30sheets/box
		9mm	27sheets/box
Orange Outward Ripple Shape Rubber	30	8mm	30sheets/box
		9mm	27sheets/box
Gray Band Shape Rubber	30	8mm	30sheets/box
		9mm	27sheets/box
Gray Outward Ripple Shape Rubber	30	8mm	30sheets/box
		9mm	27sheets/box
Gray Wave Shape Rubber	35	8mm	30sheets/box
		9mm	27sheets/box
Gray Cube Shape Rubber For the corrugated paper	25	13mm	18sheets/box
		15mm	16sheets/box
		16mm	15sheets/box
Special Rubber For Electronic Products(orange)	20	5mm	48sheets/box
		6mm	40sheets/box
		7mm	34sheets/box
Green Wave Rubber	25	8x380x300mm	24sheets/box
Green Wave Rubber	35	10x380x300mm	20sheets/box
